The License Server Manager

Chapter 6

---

The license server manager, lmgrd, is one of two FLEXnet Licensing components which comprise a license server system (the other being the vendor daemon). It handles the initial contact with FLEXenabled applications, passing the connection on to the appropriate vendor daemon. The purpose of the license server manager, lmgrd, is to:

Start and maintain all the vendor daemons listed in the VENDOR lines of the license file.
Refer application checkout (or other) requests to the correct vendor daemon.

A newer lmgrd can be used with an older vendor daemon or FLEXenabled application, but a newer vendor daemon or FLEXenabled application might not work properly with an older lmgrd. Always use the newest version of lmgrd as possible; it is available for download from www.macrovision.com.

lmgrd Command-Line Syntax

lmgrd is the main daemon for FLEXnet Licensing. When you invoke lmgrd, it looks for a license file which contains information about vendors and features and starts those vendor daemons.

Usage is:

lmgrd [-c license_file_list] [-l [+]debug_log_path]
      [-2 -p] [-local] [-x lmdown] [-x lmremove] [-z ] [-v] [-help]

where:

-c license_file_list	Use the specified license file(s).
-l [+]debug_log_path	Write debugging information to file debug_log_path. This option uses the letter l, not the numeral 1. Prepending debug_log_path with the + character appends logging entries. See Appendix G, "The Debug Log File," for more information on this file.
-2 -p	Restricts usage of lmdown, lmreread, and lmremove to a FLEXnet Licensing administrator who is by default root. If there a UNIX group called "lmadmin," then use is restricted to only members of that group. If root is not a member of this group, then root does not have permission to use any of the above utilities. If -2 -p is used when starting lmgrd, no user on Windows can shut down the license server system with lmdown.
-local	Restricts the lmdown and lmreread commands to be run only from the same machine where lmgrd is running.
-x lmdown	Disable the lmdown command (no user can run lmdown). If lmdown is disabled, stop lmgrd via kill pid (UNIX) or stop the lmgrd and vendor daemon processes through the Windows Task Manager or Windows service. On UNIX, be sure the kill command does not have a -9 argument.
-x lmremove	Disable the lmremove command (no user can run lmremove).
-z	Run in foreground. The default behavior is to run in the background. If -l debug_log_path is present, then no windows are used, but if no -l argument specified, separate windows are used for lmgrd and each vendor daemon.
-v	Displays lmgrd version number and copyright and exits.
-help	Displays usage information and exits.

Starting the License Server Manager on UNIX Platforms

If any licenses in the license file are counted (license count > 0), the license server manager, and hence the license server system, must be started before the FLEXenabled application can be used.

The license server manager, lmgrd, is started either manually on the command line or automatically at system startup. Both methods are discussed in the following sections.

---

Note Start lmgrd only on the server machine specified on the SERVER line in the license file.

If you are running three-server redundant license server systems, maintain an identical copy of the license file (as well as the lmgrd and the vendor daemons binaries) locally on each server machine rather than on a file server. If you do not do this, you lose all the advantages of having redundant servers, since the file server holding these files becomes a single point of failure. Start lmgrd only on the server machine specified on the SERVER line in the license file.

If you are running three-server redundant license server systems, maintain an identical copy of the license file (as well as the lmgrd and the vendor daemons binaries) locally on each server machine rather than on a file server. If you do not do this, you lose all the advantages of having redundant servers, since the file server holding these files becomes a single point of failure.

---

Manually

Start lmgrd from the UNIX command line using the following syntax:

lmgrd -c license_file_list -L [+]debug_log_path

where

license_file_list is one or more of the following:
the full path to a single license file
a directory, where all files named *.lic in that directory are used
debug_log_path is the full path to the debug log file

Prepending debug_log_path with the + character appends logging entries.

Start lmgrd by a user other than "root", since processes started by root can introduce security risks. If lmgrd must be started by the root user, use the su command to run lmgrd as a non-privileged user:

su username -c "lmgrd -c license_file_list -l debug_log_path"

where username is a non-privileged user. You must ensure that the vendor daemons listed in the license file have execute permissions for username. The paths to all the vendor daemons in the license file are listed on each VENDOR line.

Automatically

On UNIX, edit the appropriate boot script, which may be /etc/rc.boot, /etc/rc.local, /etc/rc2.d/Sxxx, /sbin/rc2.d/Sxxxx, etc. Include commands similar to the following. See the notes following for a full explanation.

/bin/su daniel -c 'echo starting lmgrd > \
/home/flexlm/v5.12/hp700_u9/boot.log'

/bin/nohup /bin/su daniel -c 'umask 022; \
/home/flexlm/v5.12/hp700_u9/lmgrd -c \
/home/flexlm/v5.12/hp700_u9/license.dat >> \
/home/flexlm/v5.12/hp700_u9/boot.log'

/bin/su daniel -c 'echo sleep 5 >> \
/home/flexlm/v5.12/hp700_u9/boot.log'

/bin/sleep 5

/bin/su daniel -c 'echo lmdiag >>\
/home/flexlm/v5.12/hp700_u9/boot.log'

/bin/su daniel -c '/home/flexlm/v5.12/hp700_u9/lmdiag -n -c\
/home/flexlm/v5.12/hp700_u9/license.dat >> \
/home/flexlm/v5.12/hp700_u9/boot.log'

/bin/su daniel -c 'echo exiting >>\
/home/flexlm/v5.12/hp700_u9/boot.log'

Please note the following about how this script was written:

All paths are specified in full, because no paths are assumed at boot time.
Because no paths are assumed, the vendor daemon must be in the same directory as lmgrd, or the VENDOR lines in the license file must be edited to include the full path to the vendor daemon.
The su command is used to run lmgrd as a non-root user, "daniel." It is recommended that lmgrd not be run as "root," since it is a security risk to run any program as "root" that does not require root permissions. lmgrd does not require root permissions.
Daniel has a csh login, so all commands executed as "daniel" must be in csh syntax. All commands not executed as "daniel" must be in /bin/sh syntax, since that is what is used by the boot scripts.
The use of nohup and sleep are required on some operating systems, notably HP-UX and Digital UNIX. These are not needed on Solaris and some other operating systems, but are safe to use on all.
lmdiag is used as a diagnostic tool to verify that the server is running and serving licenses.

---

Note This does not start the daemon until you reboot your license server machine. This does not start the daemon until you reboot your license server machine.

---

Starting the License Server Manager on Windows

Manually from the Command Line

Start lmgrd as an application from a Windows command shell using the following syntax:

C:\flexlm> lmgrd -c license_file_list -L [+]debug_log_path

where

license_file_list is one or more of the following:
the full path to a single license file
a directory, where all files named *.lic in that directory are used
debug_log_path is the full path to the debug log file

Prepending debug_log_path with the + character appends logging entries.

Spaces in pathnames require double quotes around the path.

On Windows, lmgrd can be installed as a service to allow it to be started and stopped through a user interface and run in the background.

Configuring the License Server Manager as a Windows Service

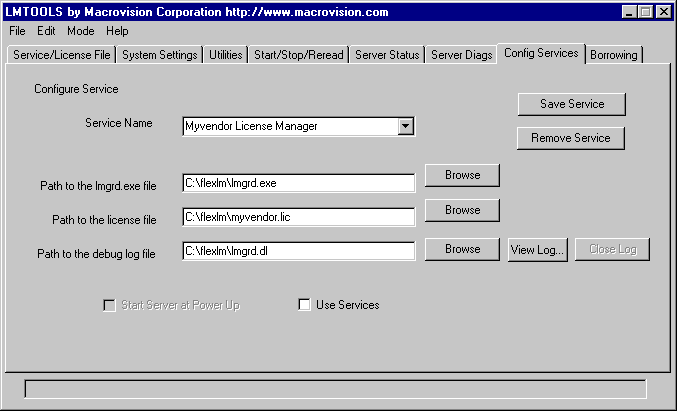

To configure a license server system as a service, you must have Administrator privileges:

Run LMTOOLS.
Click the Configuration using Services radio button, then click the Config Services tab.
In the Service Name, type the name of the service that you want to define, for example, Myvendor License Manager.
In the Path to the lmgrd.exe file field, enter or browse to lmgrd.exe for this license server system.
In the Path to the license file field, enter or browse to the license file for this license server system.
In the Path to the debug log file, enter or browse to the debug log file that this license server system writes. Prepending the debug log file name with the + character appends logging entries. The default location for the debug log file is the c:\winnt\System32 folder. To specify a different location, make sure you specify a fully qualified path.





To save the new Myvendor License Manager service, click the Save Service button.

Manually from LMTOOLS

A graphical user interface to the license server manager tools is provided called LMTOOLS. Some of the functions LMTOOLS performs include:

starting, stopping, and configuring FLEXnet license server systems
getting system information, including hostids
getting server status

In order to control the operation of lmgrd from the LMTOOLS user interface, you first must configure it as a license server manager service. Follow the procedure in "Configuring the License Server Manager as a Windows Service" before proceeding.

Once the license server manager service is configured, lmgrd is started by starting the service from the LMTOOLS interface:

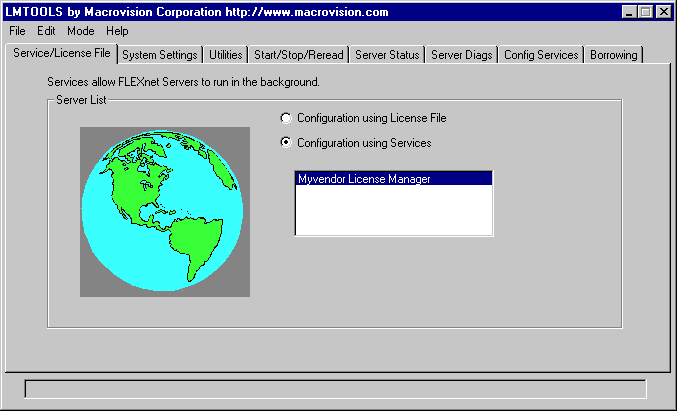

Start LMTOOLS.





LMTOOLS appears with the Service/License File tab open.

Click the Configuration using Services radio button.
Select the service name from the list presented in the selection box. In this example, the service name is Myvendor License Manager.

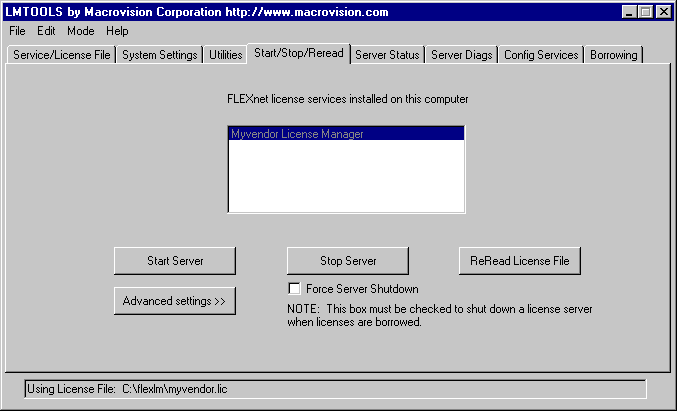

Click the Start/Stop/Reread tab.





Start Myvendor License Manager by clicking the Start Server button.

Myvendor License Manager license server system starts and writes its debug log output to c:\flexlm\lmgrd.dl.

Automatically at System Start Up

In order for lmgrd, and hence the license server system, to start up automatically at system start up time, you first must configure it as a license server manager service. Follow the procedure in "Configuring the License Server Manager as a Windows Service" before proceeding. Then continue:

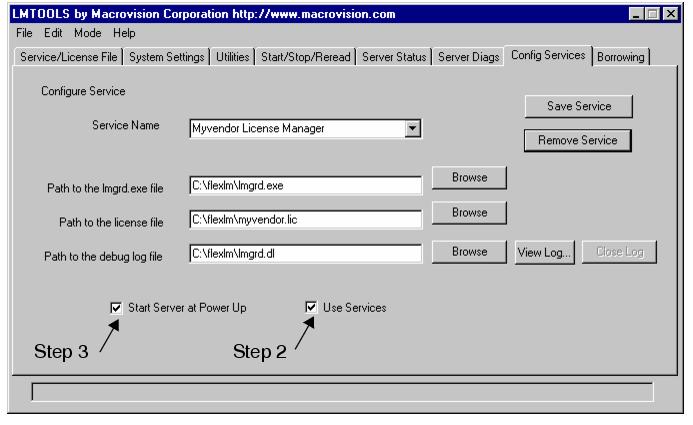

With LMTOOLS started and the desired service name selected, click the Config Services tab.





Make this license server manager a Windows service: check the Use Services check box (otherwise, it becomes a FLEXnet Licensing service).
Configure it to start at system startup time by checking the Start Server at Power Up check box.

From now on, when the machine is rebooted, this license server manager starts automatically as a Windows service.
